DIY Home Theater: Building One Yourself, Step by Step

A DIY home theater is realistic for most rooms if you plan the order right; here's the sequence, the wiring decisions, and where DIY has real limits.

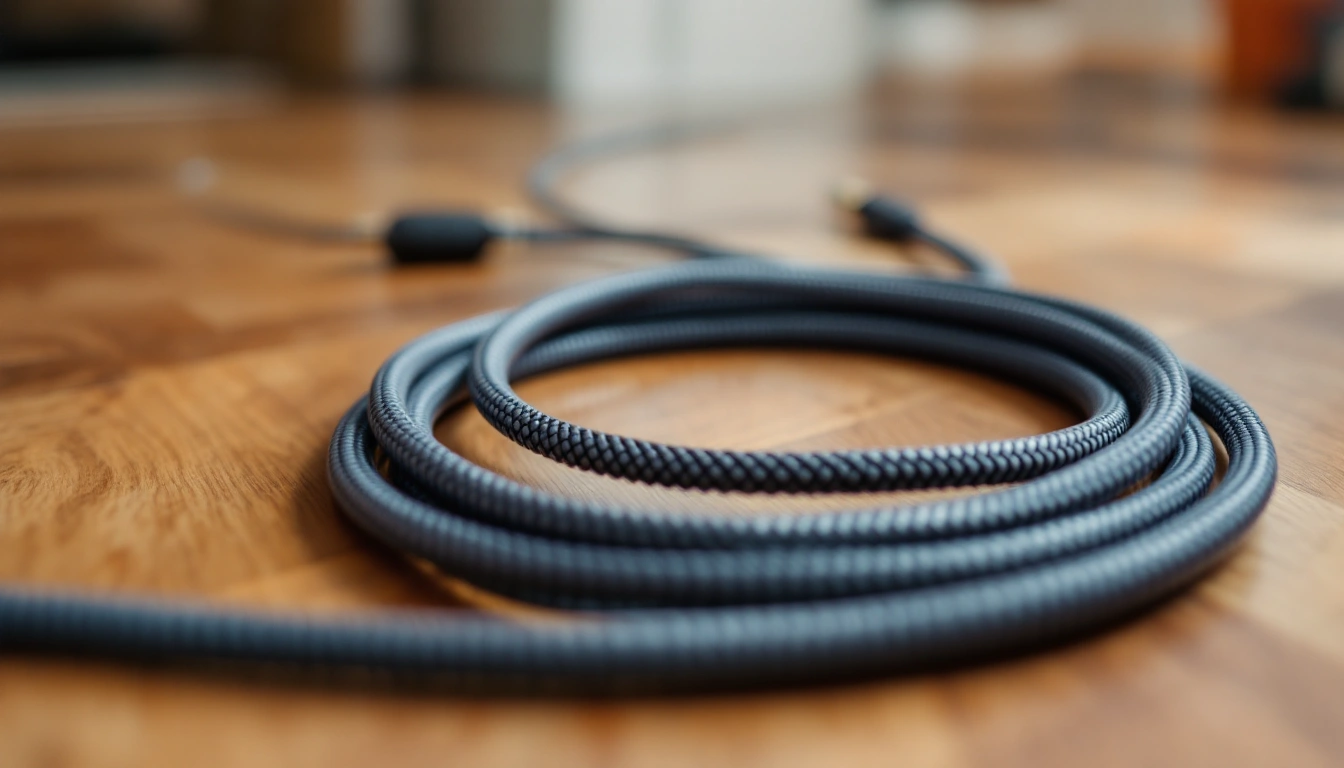

A coiled speaker cable resting on a wood floor
Contents16

A DIY home theater starts with measurements and a safe plan. Choose image and speaker locations before buying. Separate ordinary connections from electrical and structural work. Get qualified help for work you cannot verify safely.

Step 1: Plan before you buy anything

Mark the main seats and check light at the time you watch. Use those facts to compare image size and display type. Do not shop before the basic fit is known. We have no measured first-year rebuild rate to support that claim.

Step 2: Screen or display placement

Mark the image on the wall and check it from the real seats. Include reclined eye positions and the center speaker. For a projector, confirm the exact throw range and lens position before drilling. A seat-distance result does not establish lens distance or safe mount height.

Step 3: Speaker layout and wiring

This is the step with the most DIY-specific decisions:

  • Front stage first; left and center, plus right (or a soundbar standing in for all three). Get this row's placement and aim right before anything else, since it's what carries dialogue and most of the sound you'll notice every session.
  • Surrounds next, mounted beside or just behind the seating row, above ear height. Decide your wiring path now: in-wall runs give the cleanest look but require fishing wire through finished walls, which is more involved than most other DIY steps here; a surface raceway or a path tucked along baseboards is faster and fully reversible, at the cost of some visible cable.
  • Subwoofer placement, which is more forgiving than the rest; start in a corner, then walk the room with a bass-heavy track playing and adjust a foot or two based on what actually sounds best in your seat, rather than treating the first position as final.
  • Height channels, if you're building toward Dolby Atmos, are easiest to wire before any drywall or ceiling finishing work is done. Retrofitting ceiling wiring afterward is a much bigger project than running it during other work, so it's worth deciding on this now even if you don't install the speakers immediately.

Step 4: Receiver setup and calibration

Match each speaker to the assigned channel. Check polarity at both ends as the manuals direct. Disconnect power for the relevant connection work. Keep loose wire strands away from adjacent terminals. Run supported room setup after the speakers reach their final positions.

Tools and skills that actually matter

Choose tools for the verified job, not the other way round. A stud finder does not certify a wall is clear of cables or pipes. A drill does not establish a safe fixing method. Read the mount and building requirements before making holes. Use qualified help when support or hidden services are uncertain.

Where DIY has real limits

Ordinary equipment setup differs from structural fixing and electrical work. Check what each stage actually needs. Do not cut into a surface when you cannot establish what lies behind it. Use the custom theater guide to prepare a professional scope for the parts you cannot verify.

Running speaker wire the right way

Use the speaker and amplifier instructions to select wire for the run and load. Avoid a universal gauge rule for every room. Record the run length and label both ends. Keep polarity marks consistent. Check the connection itself rather than relying only on how the first song sounds.

For concealed runs, choose wire and routing suited to the location and rules. A label alone does not verify the whole installation. Keep signal wire distinct from mains work. Label both ends with the channel. Check the installed signal before closing access.

Setting up the front stage first

Check the front speakers with a supported channel signal. Confirm left and center, plus right match their names. Keep furniture clear of driver paths. Check dialogue from the actual seats. Solve a basic connection or placement problem before adding more channels.

Working around common room obstacles

Mark doors and windows, plus ceiling obstacles in the drawing. Use the matching speaker-layout guide to review permitted positions. Do not assert that symmetry always beats the stated angles. Keep access and safe fixing first. A smaller layout can be a better choice when the larger one cannot fit.

Budgeting a DIY build in phases

Build in stages when that suits the room. Establish a working picture and basic audio route first. Add the planned speakers when their positions and cable routes are ready. Check each stage before moving on. Keep any future route documented without buying unsupported or unusable equipment.

Troubleshooting the most common DIY problems

  • No sound from a channel. Check the speaker wire connection at both ends first; a loose or reversed connection is far more common than a defective speaker or a receiver channel failure.
  • Weak or muddy bass. Before assuming the subwoofer is underpowered, check its placement and try moving it a foot or two; room position affects perceived bass output more than most people expect.
  • Picture and sound out of sync. This is usually a source or display processing delay rather than a wiring issue; check for a lip-sync or audio-delay setting on the receiver or source device before assuming a hardware problem.
  • A speaker sounds thin or hollow compared to the others. Check polarity on that speaker's wire connection; a reversed positive and negative lead is a common, easy-to-miss DIY wiring mistake that noticeably changes how a speaker sounds without an obvious "wrong" symptom.

Safety considerations worth taking seriously

Do not cut or drill blind. A detector can help, but it is not complete proof of hidden services. Verify the building support and the selected mount instructions. Use qualified help where you cannot establish a safe fixing or cable route. Mains work is separate from connecting speaker wire.

Testing and living with the system before final adjustments

Use ordinary content after basic setup. Note voices and bass, plus channel placement from each main seat. Change one setting or position at a time. Keep the old values so you can undo a worse result. Repeat the supported room setup after position changes when the manual requires it.

Common mistakes

  • Buying speakers or a screen before confirming placement. The room's numbers should drive every purchase, not the other way around.
  • Wiring surrounds without a plan for the cable path. Decide in-wall versus surface routing before running any wire, not after it's already tangled across the floor.
  • Skipping calibration, or running it before speakers are in final position. Either one leaves the system tuned to a room setup that doesn't match what you'll actually watch from.
  • Mounting anything overhead without checking the ceiling material and hardware rating. A speaker or projector mount that's fine on paper can fail if it's anchored into drywall alone instead of a joist or a properly rated anchor.
  • Trying to do the whole build in one weekend. A phased approach; front stage, then surrounds and sub, then height or treatment; produces a better-tuned result than rushing every piece in at once.

Use the 5.1 guide for channels. Check the receiver choices for amps. Keep the whole-system plan alongside both.

Keep a DIY home theater build record

Record the measurements that each tool needs

Write the room length and width, then mark doors and furniture. Measure the intended image diagonal separately from wall space. For a 16:9 image, use the screen tool to calculate visible width and height. Add the manufacturer's frame dimensions afterwards. Do not enter seat distance into a tool that asks for diagonal.

For a projector, measure lens-to-image distance. Keep cabinet clearance as another field. For seating, measure screen-to-eye distance in the normal viewing position. Three values can be correct and still disagree if you measured from different planes. Label the starting and ending points.

Use one known source for the first check

Pick a source you already know works. Record its output format and the selected receiver input. Confirm picture first. Confirm audio next. This avoids diagnosing an unfamiliar app, new disc or different language track as an installation fault.

Once that route works, add the other sources. Check each one with its actual format. A successful basic stream is not proof that a high-bandwidth game or disc format works through the same chain. Keep the results separate in the record.

Label channels before the cable bundle grows

Use channel names at both ends of each speaker run. A room label such as rear corner may not match the receiver's channel assignment. Keep the layout notation beside the receiver diagram. In an Atmos build, ear-level and height channels need distinct labels.

Check one channel at a time with the supported routine. If the wrong speaker plays, inspect its label and terminal. Do not turn on another sound mode to hide the mismatch. Fix the physical or assignment error, then run setup again.

Keep a list of unresolved work

Write any missing outlet, unverified mount or inaccessible cable route in the plan. Treat those as unfinished prerequisites, not small details to solve after the gear arrives. A clear stop point can prevent an unsafe improvised solution.

For a planned second row, record the sightline rather than a guessed riser height. Use the actual screen bottom and eye heights. Structural platforms and steps need safe design and fixing. If you cannot verify that work, keep one usable row until it is resolved.

Retain service access

Check how the receiver can be disconnected without moving every speaker. Leave room for HDMI connectors and bends. For a lamp projector, keep its service panel accessible. For a screen motor, note how it can be reached and isolated safely.

Store manuals and exact model names with the build record. Keep the product suffix and region variant. A family name may cover several different connection or mounting arrangements. This helps later troubleshooting without claiming that the system will never need service.

Compare fit before buying the audio package

The Sony, Yamaha and Polk routes in the complete-system comparison have different contents. One is bar-led, one includes a conventional receiver, and one is a speaker bundle without that receiver. Start by listing what your room still needs. Do not treat all three as equivalent boxes.

For a bar, check the TV return-audio port and supported expansion. With a receiver, count amps and speaker assignments. For a speaker bundle, verify the exact included models and missing equipment. These are compatibility decisions before they are price decisions.

Use a simple issue log after installation

Write what failed, which source was active and where you sat. Note the setting or position changed. Then repeat the same scene at the same level. Keep a date so you can distinguish a later source update from the original installation.

For uneven bass, compare seats and safe sub positions. With hard-to-follow speech, inspect center placement and the incoming track. For a missing format, follow the source path. Each fault has a different first check. Replacing equipment should follow a diagnosis, not replace one.

Finish with normal use, not a loud demo

Check the controls at ordinary volume with the household's usual content. Verify that everyone can select a source and adjust sound. Keep the exit path lit and clear. A system that works technically but is awkward to operate still needs a small usability fix.

Do not claim a measured performance result from these planning checks. They help you establish your own installation. This guide contains no biography, invented ownership story or hands-on test of all the listed products.

DIY home theater verdict

Worked planning example: stereo now, 5.1.2 later

Suppose you already own two passive front speakers and a TV. You want stereo playback now and a 5.1.2 layout later. This is a planning example, not a system we claim to have installed. Start by checking the speakers' safe load and the TV's audio output.

The later layout needs five ear-level passive channels and two passive heights. That is seven speaker amps. A powered sub has its own amp and does not make it eight. Confirm the receiver supports this exact assignment. A seven-amp count alone does not establish every zone or height option.

Draw the missing center and surrounds, plus heights before selecting the receiver. If a surround position crosses the main doorway, resolve the location and wire route first. If overhead fixing cannot be verified, keep the height stage unfinished. Do not order those speakers merely because the receiver can decode Atmos.

Now list what is still missing: the receiver, planned speakers, sub, suitable leads and any safe fixing work. Compare that list with the complete-system packages. A speaker bundle without a receiver leaves a different gap from a receiver-inclusive package. Check quantities and exact variants before deciding which route saves work.

For the first stereo stage, label the front leads and verify left and right. Check the actual source route and ordinary content. Retain those working settings. When adding the later channels, check assignment and polarity again, then repeat the supported room setup. The old two-speaker result is not acceptance of the expanded layout.

This example connects the shopping list to amplifier count and installation prerequisites. It does not predict a price or claim a listening score. Use it to record your own missing stages, not to assume these seven channels fit every room.

Before closing the build record, check that it has three different lists. The first is equipment already owned, with exact model names. The second is required missing equipment. The third is unfinished room work. Keeping them separate prevents a speaker bundle from hiding a missing receiver or outlet.

For each proposed purchase, write the fit reason. A seven-channel receiver may cover a 5.1.2 passive-speaker plan. A speaker-only bundle needs a separately chosen receiver. A soundbar package needs its own documented rear connections. The right comparison depends on that reason, not just the product category.

Add the acceptance check beside each item. For a projector, that means exact image-width and throw compatibility. With a chair, check the full recline and delivery route. For a receiver, it means supported assignment and formats. A checked shopping list should explain why the item works in your plan.

Finally, record what would trigger a repeat check. Moving speakers can change the room setup. Changing a TV or source can change format pass-through. Replacing a chair can change eye position. Keep those dependencies visible so a later upgrade does not quietly invalidate the earlier measurements.

Measure and verify each stage, keep safe access and record the working setup. Use the 5.1 guide for the base channels and the receiver comparison for required amplification. Pause only the work whose fixing or connection cannot be established safely.

Questions people also ask

What's the hardest part of a DIY home theater to get right?

Wiring the surround and height speakers cleanly, without it becoming a tripping hazard or an eyesore. Running wire in-wall is the cleanest result but the most work; a raceway or baseboard-hugging path is the realistic DIY middle ground most people land on.

Do I need special tools for a DIY install?

A stud finder, a basic drill, a wire stripper, and a level cover most of it. In-wall speaker runs add a fish tape or rod for pulling wire through walls, and mounting anything heavy overhead needs hardware rated for the ceiling material, not just the speaker's weight.

Can I do the receiver setup and calibration myself?

Yes; most modern receivers walk you through channel assignment and include an automated calibration microphone that measures the room and sets levels and distances for you. It's one of the more approachable DIY steps compared to physical wiring and mounting.
